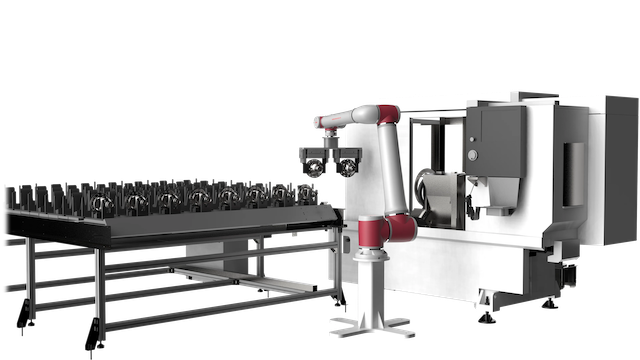

The JAKA Zu Series is JAKA's flagship line of collaborative robots, offering 7 models ranging from 3kg to 30kg payload capacity. With plug-and-play deployment, graphical programming, and IP54/IP65 protection, the Zu series enables flexible automation across manufacturing, assembly, palletizing, and quality inspection.
7 models from 3kg to 30kg payload covering 626mm to 1350mm reach. One platform for virtually any collaborative application.
Intuitive graphical programming via tablet, PC, or smartphone. Drag-and-drop interface plus hand-guiding teaching for rapid setup.
IP54/IP65 rated for reliable operation in dusty and wet environments. Built for 24/7 production lines.
| Specification | Zu3 | Zu5 | Zu7 | Zu12 | Zu18 | Zu20 | Zu30 |
|---|---|---|---|---|---|---|---|
| Payload | 3 kg | 5 kg | 7 kg | 12 kg | 18 kg | 20 kg | 30 kg |
| Weight (w/ cable) | 12 kg | 23 kg | 22 kg | 41 kg | 35 kg | 60 kg | 95 kg |
| Reach | 626 mm | 954 mm | 819 mm | 1327 mm | 1073 mm | 1700 mm | 1350 mm |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.03 mm | ±0.03 mm | ±0.05 mm | ±0.05 mm |
| Max TCP Speed | 1.5 m/s | 3 m/s | 2.5 m/s | 3 m/s | 3 m/s | 5 m/s | 4.2 m/s |
| Avg. Power | 150 W | 350 W | 350 W | 500 W | 500 W | 750 W | 750 W |
| IP Rating | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| I/O Ports | Digital ×2 | Digital ×2 | Digital ×2 | Digital ×2 | Digital ×2 | Digital ×2 | Digital ×2 |
Product brochure and technical documentation.
Contact us for pricing, demos, and custom integration solutions. As an authorized JAKA distributor in Singapore, we provide local support and competitive pricing.
