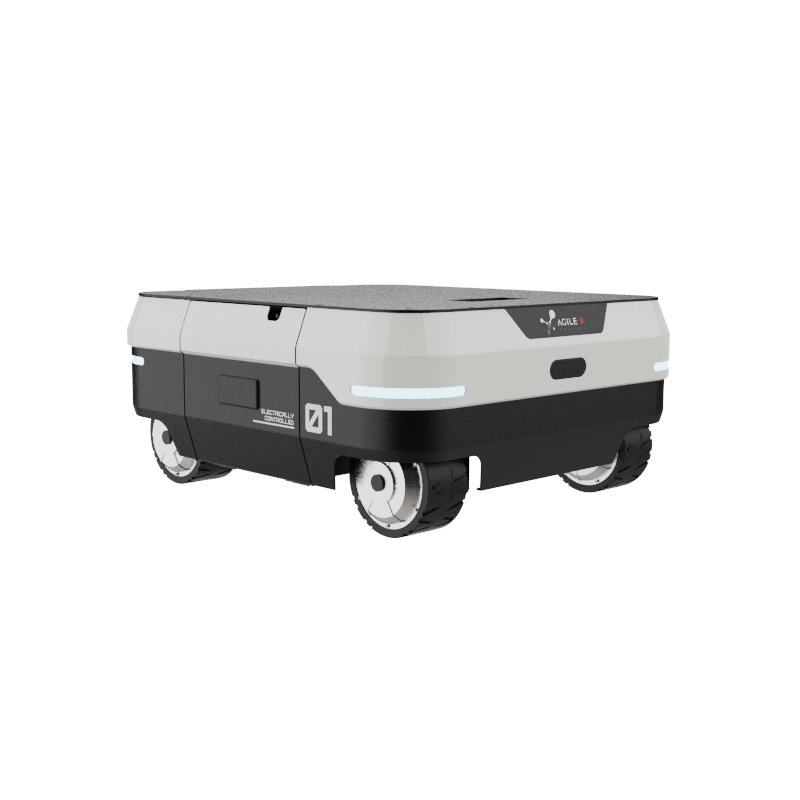

3-Wheel & 4-Wheel Omnidirectional Mobile Robots — Compact, Agile, Autonomy-Ready
The Ranger Air (4-wheel) and Ranger Delta (3-wheel) are compact omnidirectional mobile robots designed for indoor precision applications. With 80kg payload, 1.5 m/s top speed, and zero-radius in-place rotation, they excel in confined spaces for research, education, warehousing, and humanoid robotics platforms. Available in Standard and Navigation variants with optional SLAM & autonomous mapping.
0mm in-place rotation plus 680mm Ackermann turning radius. Dual drive modes — omnidirectional and Ackermann — let you switch between agility and stability on the fly.
Optional Navigation variant with SLAM & mapping support for autonomous operation. Ideal for research into autonomous navigation, SLAM algorithms, and multi-robot coordination.
552×500×250mm footprint fits through doorways and tight lab spaces. 80kg payload capacity for mounting arms, sensors, and equipment. Serves as a mobile base for humanoid robotics.
| Specification | Ranger Air (Standard) | Ranger Air (Navigation) | Ranger Delta (Standard) | Ranger Delta (Navigation) |
|---|---|---|---|---|
| Wheels | 4-wheel | 4-wheel | 3-wheel | 3-wheel |
| Drive System | 4WD, 4WS | 4WD, 4WS | 3WD, 3WS | 3WD, 3WS |
| Suspension | Trailing arm | Trailing arm | None | None |
| Weight | 50–55 kg | 50–55 kg | 45–50 kg | 45–50 kg |
| Payload | 80 kg | 80 kg | 80 kg | 80 kg |
| Max Speed | 1.5 m/s | 1.5 m/s | 1.5 m/s | 1.5 m/s |
| Max Range | 25 km | 25 km | 25 km | 25 km |
| Navigation | — | SLAM & Mapping | — | SLAM & Mapping |
Product brochure and CAD files for Ranger Air & Delta.
Contact us for pricing, technical consultation, or to arrange a demo. As an authorized AgileX distributor in Singapore, we offer the best price guarantee with local after-sales support.
Contact Us
